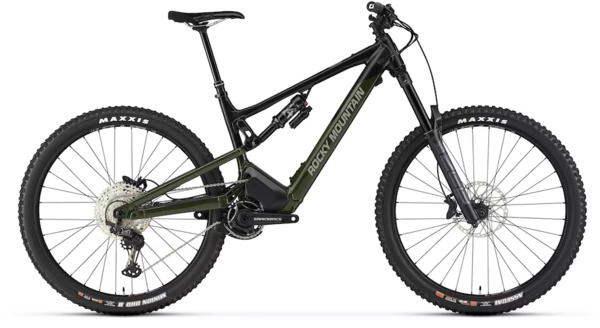

Rocky Mountain ALTITUDE POWERPLAY A70

Altitude Powerplay
Designed alongside our Dyname 4.0 drive system, the Altitude Powerplay has everything you need for aggressive enduro e-biking.

The Altitude Powerplay shares the many of the same attributes as our race proven Altitude—geometry, kinematics, and adjustability. So go ahead and smash down chutes, rail through corners, and then turn it up to ”Ludicrous” to get back up to the top faster than you ever thought possible.

SPECIFICATIONS:

*Frame
FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry + Suspension Rate | 160mm Travel. FORM™ Alloy Rear Triangle
*Fork
Fox 38 Float EVOL GRIP Performance Series 170mm | 44mm Offset
Front Travel
170mm
*Shock
Fox Float X Performance | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 230x62.5mm | Size-Specific tune in FAQ
Rear Travel
160mm
*Headset
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
*Stem
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m
*Handlebar
Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
*Grips
ODI Elite Pro Lock On
*Brakes
Shimano XT Trail 4 Piston | Metal Pads | F:Shimano RT66 203mm | R:Shimano RT66 203mm
*Shifters
Shimano XT
*Rear Derailleur
Shimano XT
*Cranks & Chainring
Race Face Aeffect Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm
*Bottom Bracket
Shimano SM-BBMT500
*Cassette
Shimano Deore 10-51T 12spd
*Chain
Shimano M6100
*Front Hub
Rocky Mountain Sealed Boost 15mm
*Rear Hub
DT Swiss Hybrid 370 Boost 148mm | 18T Star-Ratchet
*Spokes
F : DT Swiss Champion 2.0 | R : DT Swiss Alpine 2.3/2.0
*Rims
WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl
*Tires
F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready
*Seatpost
Race Face Aeffect R Dropper 30.9mm | Shimano MT500 Remote | SM = 125mm | MD = 150mm | LG - XL = 175mm
*Saddle
WTB Volt Race 142
*Drive System
Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
*Battery
720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)
*Remote
Rocky Mountain Micro Remote
Display
Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
*Charger
Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)
